23 Chapter 23: Neural Networks as Matrix Machines

Layers, weights, activations, representations, and learning

23.1 Opening story: from pixels to meaning

A photograph enters a computer as numbers.

A sentence enters a computer as numbers.

A medical record, a recommendation history, a sound wave, and a scientific measurement all enter a computer as numbers.

At first, these numbers may feel empty. A $28 \times 28$ image is only $784$ brightness values. A sentence is only a list of token identifiers. A table row is only a vector of features. But a neural network tries to transform these raw numerical descriptions into more useful descriptions.

For a handwritten digit, early layers may respond to bright pixels and dark pixels. Later layers may respond to edges, strokes, loops, and shapes. Near the end, the network may produce a vector of scores saying:

\[ \text{score}(0),\text{score}(1),\ldots,\text{score}(9). \]

The surprising part is not that the computer stores numbers. We already know that story. The surprising part is that the computer can learn useful coordinate systems for those numbers.

This chapter explains neural networks through the linear algebra language developed throughout this book.

The central message is:

Big idea

A neural network is a trainable chain of matrix machines with nonlinear gates between them.

A single layer looks like

\[ h = \sigma(Wx+b). \]

The matrix $W$ mixes features. The bias $b$ shifts thresholds. The activation function $\sigma$ introduces nonlinearity. Stacking many such layers creates a representation-learning machine.

23.2 Learning goals

By the end of this chapter, you should be able to:

Interpret a neuron as a dot product plus a bias followed by an activation.
Write a layer as $h=\sigma(Wx+b)$ and explain the shapes of $W$, $x$, $b$, and $h$.
Explain why nonlinear activation functions are necessary.
Compute a forward pass through a small neural network by hand and in Python.
Interpret hidden layers as learned representations.
Explain batch computation using matrix multiplication.
Use softmax to convert class scores into probabilities.
Describe training as optimization over weight matrices and bias vectors.
Connect neural networks to images, text, recommendation systems, and previous linear algebra ideas.
Build and visualize small neural networks in Python.

23.3 23.1 A neuron is a small scoring machine

A neuron receives an input vector

\[ x = \begin{bmatrix}x_1\\x_2\\ \vdots \\ x_n\end{bmatrix} \in \mathbb{R}^n. \]

It also has a weight vector

\[ w = \begin{bmatrix}w_1\\w_2\\ \vdots \\ w_n\end{bmatrix} \in \mathbb{R}^n \]

and a bias $b \in \mathbb{R}$.

First, it computes a weighted score:

\[ z = w \cdot x + b = w_1x_1+w_2x_2+\cdots+w_nx_n+b. \]

Then it applies an activation function $\sigma$:

\[ h = \sigma(z). \]

So one neuron computes

\[ h = \sigma(w \cdot x+b). \]

Meaning of the pieces

The vector $x$ is the information entering the neuron.
The vector $w$ is the pattern the neuron is looking for.
The dot product $w \cdot x$ measures alignment with that pattern.
The bias $b$ shifts the threshold.
The activation $\sigma$ decides how strongly the neuron responds.

23.3.1 Example 23.1: a small neuron

Let

\[ x=\begin{bmatrix}2\\3\end{bmatrix}, \quad w=\begin{bmatrix}0.5\\-1\end{bmatrix}, \quad b=1. \]

Then

\[ z=w\cdot x+b=0.5(2)-1(3)+1=-1. \]

If $\sigma(z)=\operatorname{ReLU}(z)=\max(0,z)$, then

\[ h=\operatorname{ReLU}(-1)=0. \]

Code

import numpy as np
import matplotlib.pyplot as plt

x = np.array([2, 3], dtype=float)
w = np.array([0.5, -1], dtype=float)
b = 1.0

z = w @ x + b
h = np.maximum(0, z)

z, h

(-1.0, 0.0)

The neuron is inactive because the score is negative.

23.4 23.2 Activation functions are nonlinear gates

A linear score alone is not enough to build a flexible model. The activation function changes how a neuron responds to its score.

Common activation functions include:

\[ \operatorname{ReLU}(z)=\max(0,z), \]

\[ \operatorname{sigmoid}(z)=\frac{1}{1+e^{-z}}, \]

and

\[ \tanh(z)=\frac{e^z-e^{-z}}{e^z+e^{-z}}. \]

Code

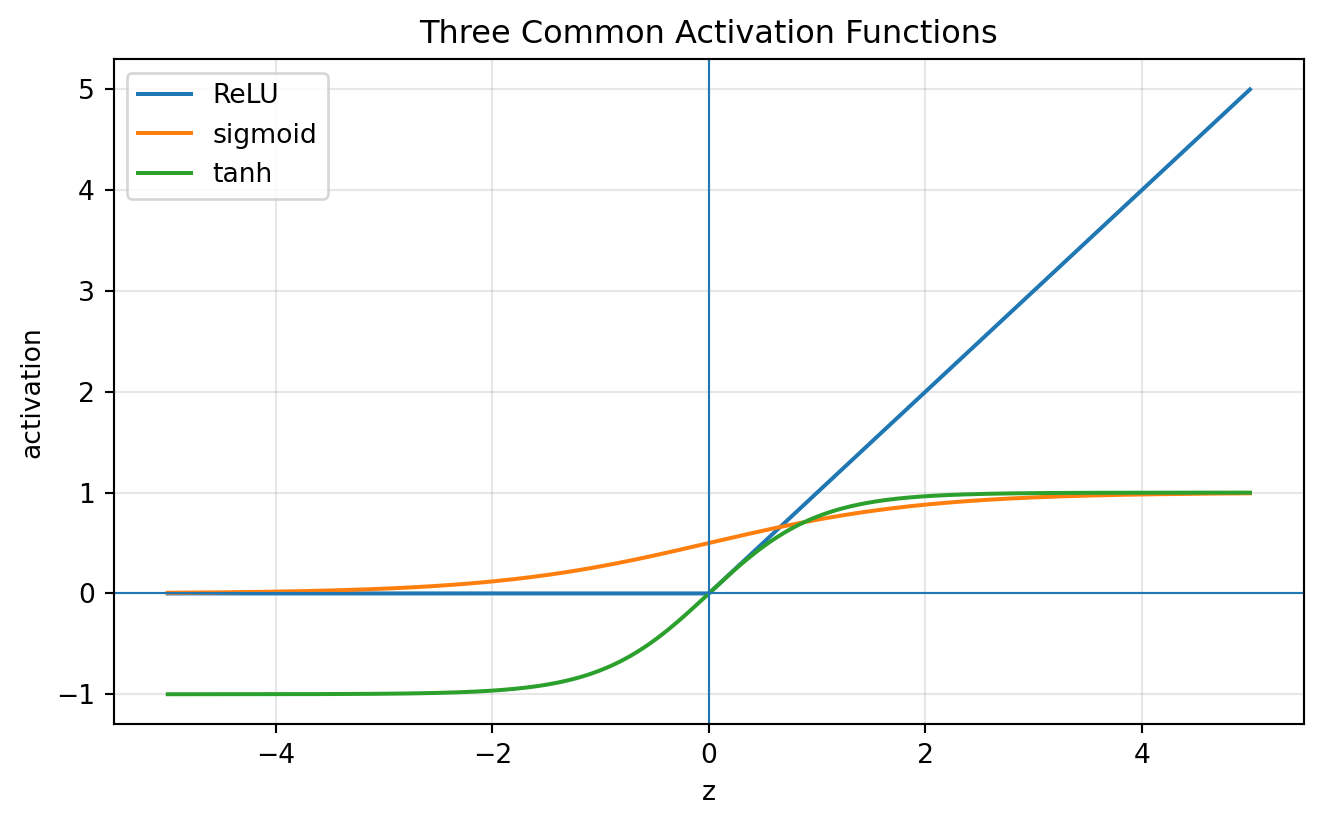

z_grid = np.linspace(-5, 5, 500)
relu = np.maximum(0, z_grid)
sigmoid = 1 / (1 + np.exp(-z_grid))
tanh = np.tanh(z_grid)

plt.figure(figsize=(8, 4.5))
plt.plot(z_grid, relu, label="ReLU")
plt.plot(z_grid, sigmoid, label="sigmoid")
plt.plot(z_grid, tanh, label="tanh")
plt.axhline(0, linewidth=0.8)
plt.axvline(0, linewidth=0.8)
plt.xlabel("z")
plt.ylabel("activation")
plt.title("Three Common Activation Functions")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

Why activation matters

The matrix part mixes information linearly. The activation part bends the computation.

Without activation functions, a deep network collapses into one linear map.

23.5 23.3 Why stacked linear layers collapse

Suppose a two-layer network has no activation:

\[ h = W_1x, \]

\[ y = W_2h. \]

Then

\[ y = W_2W_1x. \]

Since $W_2W_1$ is another matrix, the two layers are equivalent to one linear transformation.

More generally, if every layer is linear, then

\[ W_LW_{L-1}\cdots W_2W_1x \]

is still only one linear transformation.

Deep but still linear

Depth alone does not create nonlinear flexibility. The nonlinear activation functions are what prevent the network from collapsing into one matrix.

This is why neural networks combine linear algebra with nonlinear gates.

23.6 23.4 A layer is many neurons at once

A layer contains many neurons. If there are $m$ neurons and $n$ input features, the layer has a weight matrix

\[ W \in \mathbb{R}^{m \times n}. \]

Each row of $W$ is the weight vector for one neuron:

\[ W= \begin{bmatrix} ---w_1^T---\\ ---w_2^T---\\ \vdots\\ ---w_m^T--- \end{bmatrix}. \]

The layer computes

\[ z = Wx+b, \]

where $b \in \mathbb{R}^m$. Then it applies an activation component by component:

\[ h = \sigma(z)=\sigma(Wx+b). \]

Object	Shape	Meaning
$x$	$n \times 1$	input vector
$W$	$m \times n$	weight matrix
$b$	$m \times 1$	bias vector
$z=Wx+b$	$m \times 1$	pre-activation scores
$h=\sigma(z)$	$m \times 1$	hidden representation

Layer formula

A neural network layer is

\[ h=\sigma(Wx+b). \]

23.7 23.5 Column view and row view of a layer

The same matrix layer has two useful interpretations.

23.7.1 Row view: each neuron asks a question

The $i$th row of $W$ gives one neuron:

\[ z_i = w_i \cdot x + b_i. \]

So each row asks:

How strongly does this input match my learned pattern?

23.7.2 Column view: each input feature contributes to all neurons

Write

\[ W = \begin{bmatrix} | & | & & | \\ c_1 & c_2 & \cdots & c_n \\ | & | & & | \end{bmatrix}. \]

Then

\[ Wx=x_1c_1+x_2c_2+\cdots+x_nc_n. \]

So each input coordinate controls one column contribution to the whole hidden vector.

Two views

Row view: neurons detect patterns.
Column view: input features contribute columns to the hidden representation.

23.8 23.6 A tiny layer example

Let

\[ x=\begin{bmatrix}2\\3\end{bmatrix}, \quad W=\begin{bmatrix} 1&0\\ 0&1\\ 1&-1 \end{bmatrix}, \quad b=\begin{bmatrix}0\\0\\1\end{bmatrix}. \]

Then

\[ z=Wx+b, \quad h=\operatorname{ReLU}(z). \]

Code

def relu(z):
    return np.maximum(0, z)

x = np.array([2.0, 3.0])
W = np.array([[1, 0], [0, 1], [1, -1]], dtype=float)
b = np.array([0, 0, 1], dtype=float)

z = W @ x + b
h = relu(z)

z, h

(array([2., 3., 0.]), array([2., 3., 0.]))

The layer changes a vector in $\mathbb{R}^2$ into a vector in $\mathbb{R}^3$.

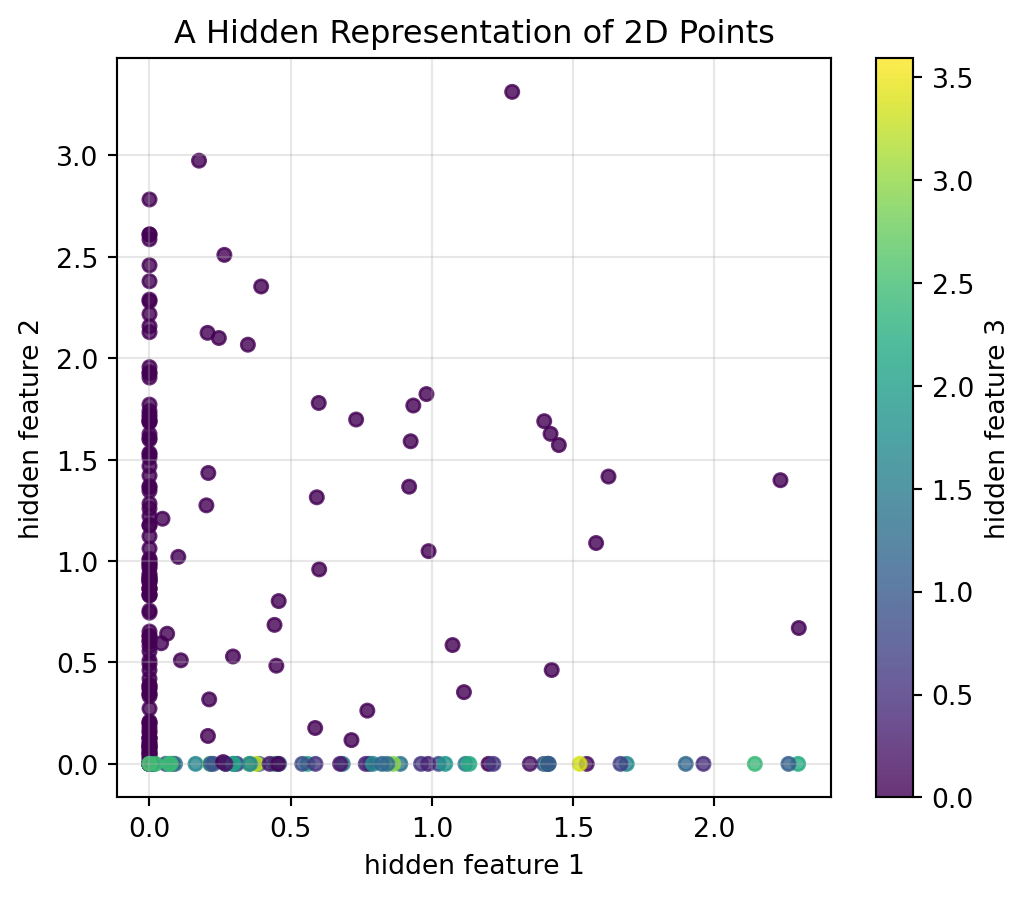

23.9 23.7 Hidden representations

The vector $h$ produced by a hidden layer is called a hidden representation.

This is one of the deepest ideas in modern AI:

Representation learning

A neural network does not only make predictions. It learns new coordinate systems for data.

For images, hidden representations may gradually move from pixels to edges to shapes to objects.

For text, hidden representations may move from tokens to local meaning to sentence-level meaning.

For recommendation systems, hidden representations may move from user-item behavior to latent preferences.

For scientific data, hidden representations may move from measurements to hidden variables.

23.10 23.8 A network is a composition of layers

A two-layer network may be written as

\[ h = \sigma(W_1x+b_1), \]

\[ \hat{y}=W_2h+b_2. \]

Combining them gives

\[ \hat{y}=W_2\sigma(W_1x+b_1)+b_2. \]

A deeper network repeats this pattern:

\[ x \longmapsto h_1 \longmapsto h_2 \longmapsto \cdots \longmapsto h_L \longmapsto \hat{y}. \]

This is composition, one of the central ideas in mathematics.

23.11 23.9 Forward propagation

A forward pass means computing the output from the input.

Code

x = np.array([2.0, 3.0])

W1 = np.array([
    [1.0, 0.0],
    [0.0, 1.0],
    [1.0, -1.0]
])
b1 = np.array([0.0, 0.0, 1.0])

W2 = np.array([[1.0, 1.0, -1.0]])
b2 = np.array([0.5])

h = relu(W1 @ x + b1)
y_hat = W2 @ h + b2

h, y_hat

(array([2., 3., 0.]), array([5.5]))

This is the computation a neural network performs before it knows whether its prediction is correct.

23.12 23.10 Batch computation: many examples at once

In practice, we usually process many examples at the same time.

Let $X \in \mathbb{R}^{N \times n}$ be a data matrix whose rows are examples. If $W \in \mathbb{R}^{m \times n}$, then the batch version of the layer is

\[ Z=XW^T+\mathbf{1}b^T, \]

where $Z \in \mathbb{R}^{N \times m}$.

Code

X = np.array([
    [2.0, 3.0],
    [1.0, 1.0],
    [4.0, 0.5],
    [-1.0, 2.0]
])

Z = X @ W1.T + b1
H = relu(Z)

H

array([[2. , 3. , 0. ],
       [1. , 1. , 1. ],
       [4. , 0.5, 4.5],
       [0. , 2. , 0. ]])

This is why modern AI depends so heavily on fast matrix multiplication.

23.13 23.11 Decision boundaries

A single linear neuron has a decision boundary

\[ w\cdot x+b=0. \]

In two dimensions, this is a line. In higher dimensions, it is a hyperplane.

A ReLU neuron changes behavior on the two sides of this boundary:

\[ \operatorname{ReLU}(w\cdot x+b)= \begin{cases} 0, & w\cdot x+b\leq 0,\\ w\cdot x+b, & w\cdot x+b>0. \end{cases} \]

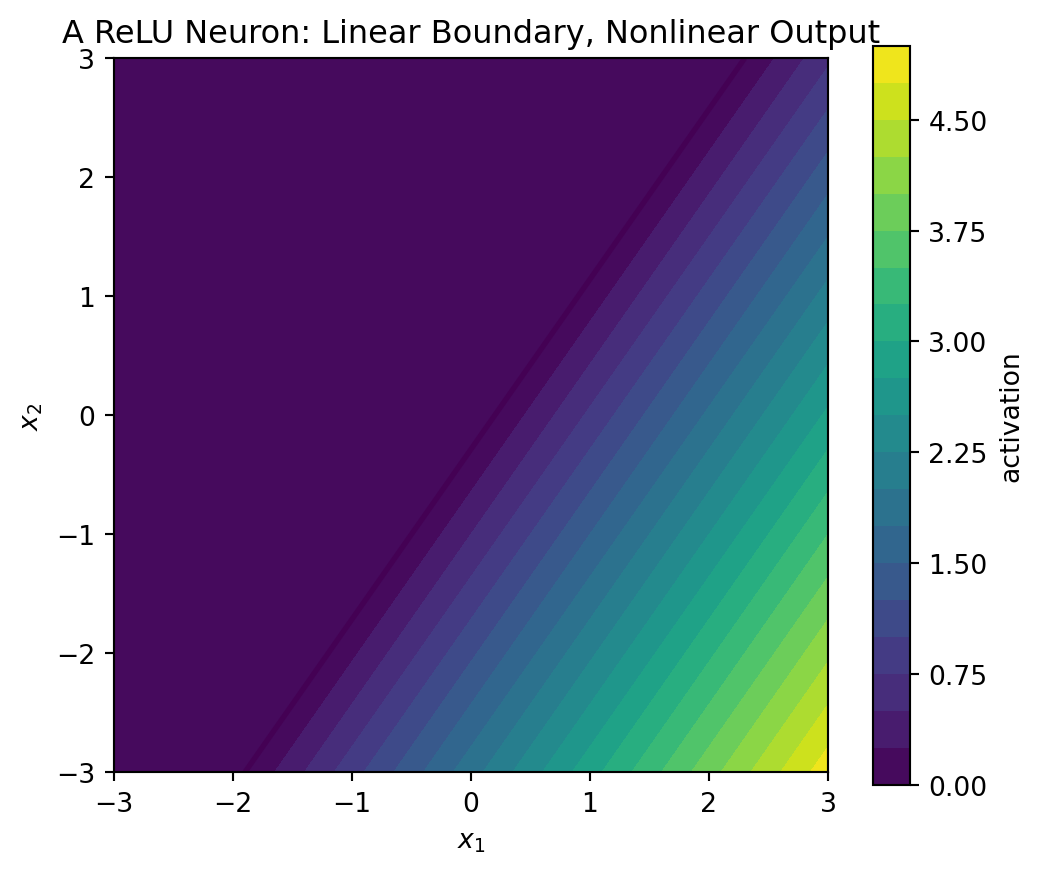

Code

x1 = np.linspace(-3, 3, 300)
x2 = np.linspace(-3, 3, 300)
X1, X2 = np.meshgrid(x1, x2)

w_boundary = np.array([1.0, -0.7])
b_boundary = -0.2
Z = w_boundary[0]*X1 + w_boundary[1]*X2 + b_boundary
A = np.maximum(0, Z)

plt.figure(figsize=(6, 5))
plt.contourf(X1, X2, A, levels=20)
plt.contour(X1, X2, Z, levels=[0], linewidths=2)
plt.xlabel("$x_1$")
plt.ylabel("$x_2$")
plt.title("A ReLU Neuron: Linear Boundary, Nonlinear Output")
cf = plt.contourf(X1, X2, A, levels=20)
plt.colorbar(cf, label="activation")
plt.gca().set_aspect("equal", adjustable="box")
plt.show()

23.14 23.12 Nonlinear boundaries from hidden layers

One neuron creates one fold. Many neurons create many folds. A hidden layer can divide the plane into several regions, and a second layer can combine those regions.

This is why a neural network can model curved or piecewise-linear boundaries even though each matrix multiplication is linear.

Geometric view

Neural networks repeatedly transform the space so that complicated patterns become easier to separate.

23.15 23.13 Classification scores and softmax

For classification, the last layer often outputs one score per class.

For example,

\[ s=\begin{bmatrix}s_1\\s_2\\s_3\end{bmatrix} \]

could represent scores for three classes.

The predicted class is the one with the largest score.

Code

scores = np.array([1.2, 3.5, 0.7])
classes = np.array(["cat", "dog", "bird"])
classes[np.argmax(scores)]

'dog'

Softmax converts scores into positive numbers that add to $1$:

\[ p_i=\frac{e^{s_i}}{\sum_{j=1}^k e^{s_j}}. \]

Code

def softmax(scores):
    shifted = scores - np.max(scores)
    exp_scores = np.exp(shifted)
    return exp_scores / exp_scores.sum()

softmax(scores)

array([0.08635047, 0.86127533, 0.05237421])

Softmax

Softmax turns raw class scores into a probability distribution.

23.16 23.14 Loss functions measure error

A network needs feedback. The loss function tells the network how wrong it is.

For regression, a common loss is mean squared error:

\[ L=\frac{1}{N}\sum_{i=1}^N (y_i-\hat{y}_i)^2. \]

For classification, a common loss is cross-entropy. If the true class is $c$, and the softmax probability assigned to that class is $p_c$, then the loss for one example is

\[ L=-\log(p_c). \]

A confident correct prediction has small loss. A confident wrong prediction has large loss.

23.17 23.15 Training is optimization over matrices

The weights and biases are learned from data. Training means solving an optimization problem:

\[ \min_{W_1,b_1,W_2,b_2,\ldots} L. \]

Gradient descent updates parameters by moving against the gradient:

\[ \theta_{\text{new}} = \theta_{\text{old}}-\eta \nabla L(\theta_{\text{old}}). \]

Here $\eta$ is the learning rate and $\theta$ represents all trainable parameters.

Training goal

A neural network learns by changing matrices and bias vectors so that the loss decreases.

23.18 23.16 A tiny regression training example

We first train the simplest model:

\[ \hat{y}=wx+b. \]

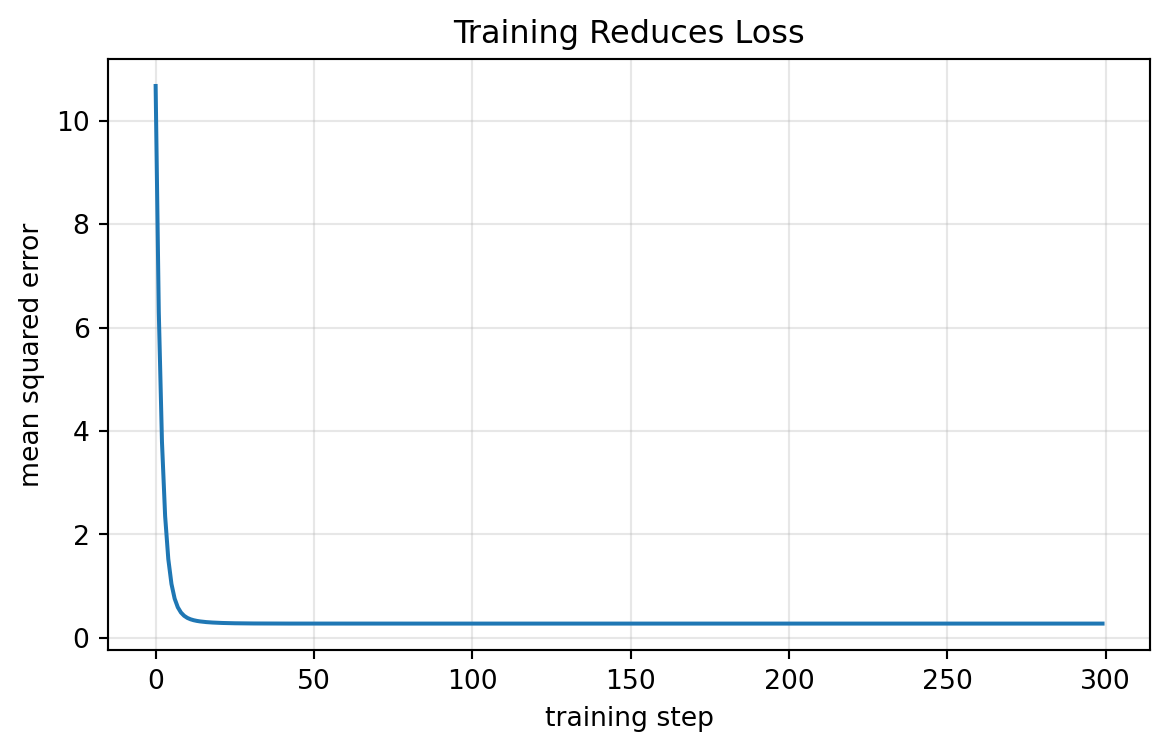

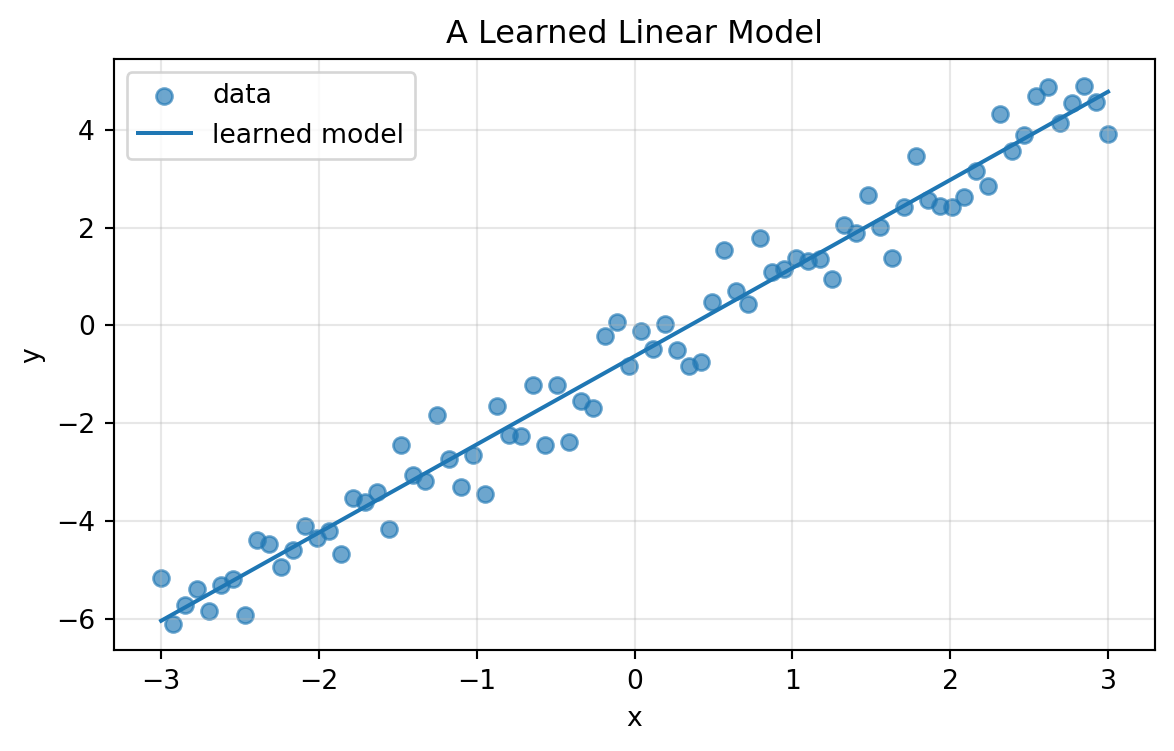

Code

np.random.seed(7)
X_train = np.linspace(-3, 3, 80)
y_train = 1.8 * X_train - 0.6 + 0.5*np.random.normal(size=80)

w = 0.0
b = 0.0
eta = 0.04
loss_history = []

for step in range(300):
    y_pred = w * X_train + b
    error = y_pred - y_train
    loss = np.mean(error**2)
    loss_history.append(loss)
    grad_w = 2*np.mean(error * X_train)
    grad_b = 2*np.mean(error)
    w -= eta * grad_w
    b -= eta * grad_b

w, b, loss_history[-1]

(1.8025337939337942, -0.6310421664257352, 0.2776807055918692)

Code

plt.figure(figsize=(7, 4))
plt.plot(loss_history)
plt.xlabel("training step")
plt.ylabel("mean squared error")
plt.title("Training Reduces Loss")
plt.grid(True, alpha=0.3)
plt.show()

plt.figure(figsize=(7, 4))
plt.scatter(X_train, y_train, alpha=0.65, label="data")
plt.plot(X_train, w*X_train+b, label="learned model")
plt.xlabel("x")
plt.ylabel("y")
plt.title("A Learned Linear Model")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

This example is not deep, but it shows the essential training idea: parameters move to reduce loss.

23.19 23.17 A tiny nonlinear network for XOR

The XOR pattern is a classic example because it is not linearly separable.

The four input points are

\[ (0,0), (0,1), (1,0), (1,1), \]

with labels

\[ 0,1,1,0. \]

No single line separates the $1$s from the $0$s. But a network with a hidden layer can do it.

The following hand-built network uses ReLU features:

\[ h_1=\operatorname{ReLU}(x_1+x_2), \]

\[ h_2=\operatorname{ReLU}(x_1+x_2-1), \]

and then combines them as

\[ \hat{y}=h_1-2h_2. \]

Code

X_xor = np.array([[0,0], [0,1], [1,0], [1,1]], dtype=float)
W1_xor = np.array([[1, 1], [1, 1]], dtype=float)
b1_xor = np.array([0, -1], dtype=float)
W2_xor = np.array([[1, -2]], dtype=float)
b2_xor = np.array([0], dtype=float)

H_xor = relu(X_xor @ W1_xor.T + b1_xor)
y_xor_score = H_xor @ W2_xor.T + b2_xor

np.c_[X_xor, H_xor, y_xor_score]

array([[0., 0., 0., 0., 0.],
       [0., 1., 1., 0., 1.],
       [1., 0., 1., 0., 1.],
       [1., 1., 2., 1., 0.]])

This tiny example shows the power of hidden representations. The hidden layer creates new features that make the pattern easier to express.

23.20 23.18 Images: fully connected layers and parameter counts

A grayscale $28 \times 28$ image can be flattened into a vector in $\mathbb{R}^{784}$.

If a fully connected layer has $128$ neurons, then

\[ W \in \mathbb{R}^{128 \times 784}. \]

The layer has

\[ 128 \cdot 784 \]

weights and $128$ biases.

Code

num_weights = 128 * 784
num_biases = 128
num_weights + num_biases

This is already many parameters for a tiny image. For larger images, fully connected layers become very expensive. This motivates convolutional layers, which use small local filters instead of dense connections.

23.21 23.19 Text: embeddings and attention as linear algebra

For text, the first step is often embedding: each token becomes a vector.

A sentence of $n$ tokens with embedding dimension $d$ becomes a matrix

\[ X \in \mathbb{R}^{n \times d}. \]

Modern language models repeatedly transform these token vectors.

One important operation is attention. In simplified form, attention uses three matrices:

\[ Q=XW_Q, \quad K=XW_K, \quad V=XW_V. \]

Then it computes dot-product scores:

\[ QK^T. \]

So even modern language models are filled with matrix multiplication, dot products, and vector representations.

23.22 23.20 Neural networks and the rest of this book

Earlier idea	Neural-network meaning
Vector	input, hidden state, embedding, output
Matrix	weight layer, projection, feature mixer
Dot product	neuron score, similarity score, attention score
Norm	error size, weight size, regularization
Projection	feature extraction and approximation
Orthogonality	stable coordinates, decorrelation, initialization ideas
Eigenvalues	stability of repeated transformations
SVD	compression, denoising, low-rank structure
Optimization	training weights to reduce loss
Geometry	decision boundaries and representation spaces

Neural networks do not replace linear algebra. They intensify it.

23.23 23.21 What neural networks can and cannot explain

Neural networks are powerful, but they are not magic.

They can learn flexible patterns from data, but they also depend on:

data quality,
feature representation,
training stability,
architecture choice,
loss function choice,
regularization,
computational resources,
and evaluation design.

A model may fit training data well but fail on new data. It may rely on spurious patterns. It may be hard to interpret. It may behave unpredictably outside the training distribution.

Linear algebra helps us ask better questions:

What space is the data living in?
What transformations are being applied?
What information is amplified?
What information is lost?
What directions are unstable?
What representation is learned?

23.24 23.22 Worked examples

23.24.1 Example 23.2: shape of a layer

A layer takes $20$ input features and produces $7$ hidden features. Then

\[ W \in \mathbb{R}^{7 \times 20}, \quad b \in \mathbb{R}^7, \quad h \in \mathbb{R}^7. \]

It has

\[ 7\cdot 20+7=147 \]

trainable parameters.

23.24.2 Example 23.3: two linear layers without activation

Let

\[ W_1=\begin{bmatrix}1&2\\0&1\end{bmatrix}, \quad W_2=\begin{bmatrix}2&0\\1&1\end{bmatrix}. \]

Without activation, the two-layer map is

\[ y=W_2W_1x. \]

Compute

\[ W_2W_1 = \begin{bmatrix}2&4\\1&3\end{bmatrix}. \]

So the two layers are equivalent to the single matrix

\[ \begin{bmatrix}2&4\\1&3\end{bmatrix}. \]

23.24.3 Example 23.4: softmax and prediction

Suppose a classifier returns scores

\[ s=\begin{bmatrix}1.0\\2.0\\0.5\end{bmatrix}. \]

The largest score is the second score, so the predicted class is class $2$. The softmax probabilities are

Code

softmax(np.array([1.0, 2.0, 0.5]))

array([0.2312239 , 0.62853172, 0.14024438])

23.25 23.23 Practice problems

23.25.1 Problem 1

Let

\[ x=\begin{bmatrix}1\\2\\-1\end{bmatrix}, \quad w=\begin{bmatrix}3\\-1\\2\end{bmatrix}, \quad b=4. \]

Compute $z=w\cdot x+b$ and $\operatorname{ReLU}(z)$.

Solution

\[ z=3(1)-1(2)+2(-1)+4=3. \]

Therefore

\[ \operatorname{ReLU}(z)=3. \]

23.25.2 Problem 2

Let

\[ W=\begin{bmatrix} 1&0\\ 0&1\\ 1&1 \end{bmatrix}, \quad x=\begin{bmatrix}2\\4\end{bmatrix}, \quad b=\begin{bmatrix}0\\0\\-3\end{bmatrix}. \]

Compute $z=Wx+b$ and $h=\operatorname{ReLU}(z)$.

Solution

\[ Wx=\begin{bmatrix}2\\4\\6\end{bmatrix}, \quad z=\begin{bmatrix}2\\4\\3\end{bmatrix}. \]

All entries are positive, so

\[ h=\begin{bmatrix}2\\4\\3\end{bmatrix}. \]

23.25.3 Problem 3

A layer has input dimension $50$ and output dimension $12$. What is the shape of its weight matrix? How many biases does it have?

Solution

The weight matrix has shape $12 \times 50$. The bias vector has $12$ entries.

23.25.4 Problem 4

A flattened color image has dimension $32\cdot 32\cdot 3$. A fully connected layer has $200$ neurons. How many weights and biases does the layer have?

Solution

The input dimension is

\[ 32\cdot 32\cdot 3=3072. \]

The layer has

\[ 200\cdot 3072=614400 \]

weights and $200$ biases.

23.25.5 Problem 5

Explain why nonlinear activation functions are necessary in deep networks.

Solution

Without nonlinear activations, each layer is a linear transformation. The composition of linear transformations is still linear, so the whole deep network would be equivalent to one matrix. Nonlinear activations prevent this collapse and allow the network to represent more flexible patterns.

23.25.6 Problem 6

What is a hidden representation? Give one example from images and one from text.

Solution

A hidden representation is an internal vector produced by a hidden layer. For images, it might encode edges or shapes. For text, it might encode semantic information about a word or sentence.

23.25.7 Problem 7

Why is batch computation written as $Z=XW^T+\mathbf{1}b^T$ instead of repeating one example at a time?

Solution

The batch formula processes many examples simultaneously using one matrix multiplication. This is more efficient and matches how modern hardware accelerates neural network computation.

23.25.8 Problem 8

Why is a single neuron in $\mathbb{R}^2$ unable to represent the XOR pattern by itself?

Solution

A single threshold neuron separates the plane with one line. The XOR labels cannot be separated by one line, so a single linear decision boundary is not enough.

23.26 23.24 Python practice

23.26.1 Exercise 1: compute one neuron

Code

x = np.array([1, 2, -1], dtype=float)
w = np.array([3, -1, 2], dtype=float)
b = 4.0
z = w @ x + b
h = relu(z)
z, h

(3.0, 3.0)

23.26.2 Exercise 2: compute one layer

Code

W = np.array([[1, 0], [0, 1], [1, 1]], dtype=float)
x = np.array([2, 4], dtype=float)
b = np.array([0, 0, -3], dtype=float)
z = W @ x + b
h = relu(z)
z, h

(array([2., 4., 3.]), array([2., 4., 3.]))

23.26.3 Exercise 3: batch layer computation

Code

X = np.array([
    [2, 4],
    [1, 1],
    [3, 0],
    [0, 2]
], dtype=float)
Z = X @ W.T + b
H = relu(Z)
H

array([[2., 4., 3.],
       [1., 1., 0.],
       [3., 0., 0.],
       [0., 2., 0.]])

23.26.4 Exercise 4: visualize a hidden layer in two dimensions

Code

def tiny_hidden_features(points):
    W = np.array([[1, 1], [1, -1], [-1, 1]], dtype=float)
    b = np.array([-0.5, 0.0, 0.0])
    return relu(points @ W.T + b)

rng = np.random.default_rng(10)
points = rng.normal(size=(300, 2))
H = tiny_hidden_features(points)

plt.figure(figsize=(6, 5))
plt.scatter(H[:, 0], H[:, 1], c=H[:, 2], s=25, alpha=0.8)
plt.xlabel("hidden feature 1")
plt.ylabel("hidden feature 2")
plt.title("A Hidden Representation of 2D Points")
plt.colorbar(label="hidden feature 3")
plt.grid(True, alpha=0.3)
plt.show()

23.26.5 Exercise 5: softmax

Code

scores = np.array([2.0, 0.5, 1.2, 3.1])
softmax(scores)

array([0.21382941, 0.04771179, 0.09607975, 0.64237905])

23.26.6 Exercise 6: train a tiny nonlinear model

Code

# A small NumPy network for a nonlinear one-dimensional curve.
np.random.seed(3)
X = np.linspace(-2, 2, 120).reshape(-1, 1)
y = (np.sin(3*X[:, 0]) + 0.15*np.random.randn(120)).reshape(-1, 1)

hidden = 12
W1 = 0.5*np.random.randn(hidden, 1)
b1 = np.zeros((hidden,))
W2 = 0.5*np.random.randn(1, hidden)
b2 = np.zeros((1,))
eta = 0.02
losses = []

for step in range(1500):
    Z1 = X @ W1.T + b1
    H = np.maximum(0, Z1)
    Yhat = H @ W2.T + b2
    E = Yhat - y
    loss = np.mean(E**2)
    losses.append(loss)

    dY = 2*E/len(X)
    dW2 = dY.T @ H
    db2 = dY.sum(axis=0)
    dH = dY @ W2
    dZ1 = dH * (Z1 > 0)
    dW1 = dZ1.T @ X
    db1 = dZ1.sum(axis=0)

    W2 -= eta*dW2
    b2 -= eta*db2
    W1 -= eta*dW1
    b1 -= eta*db1

plt.figure(figsize=(7, 4))
plt.plot(losses)
plt.xlabel("step")
plt.ylabel("MSE")

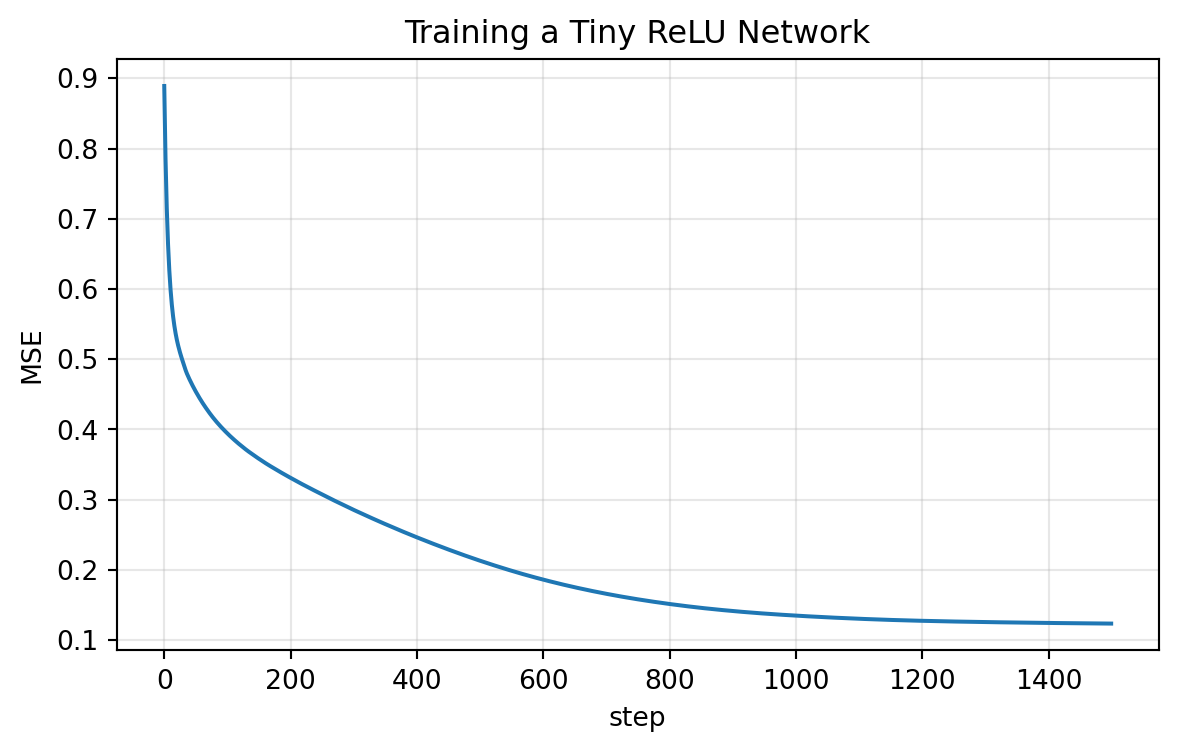

plt.title("Training a Tiny ReLU Network")
plt.grid(True, alpha=0.3)
plt.show()

plt.figure(figsize=(7, 4))
plt.scatter(X[:, 0], y[:, 0], s=20, alpha=0.55, label="data")
plt.plot(X[:, 0], Yhat[:, 0], linewidth=2, label="network fit")
plt.xlabel("x")
plt.ylabel("y")

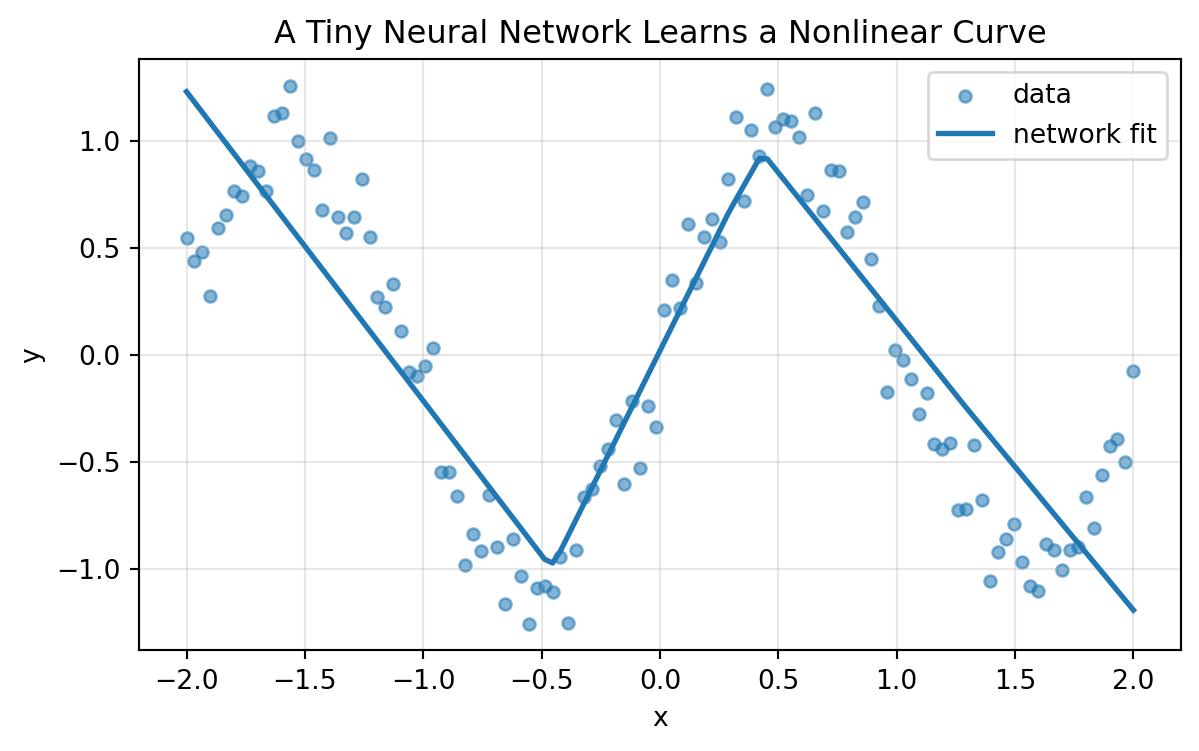

plt.title("A Tiny Neural Network Learns a Nonlinear Curve")
plt.legend()
plt.grid(True, alpha=0.3)
plt.show()

23.27 23.25 AI companion activities

23.27.1 Activity 1: neuron as dot product

Ask an AI tool:

Explain a neuron as a dot product plus bias followed by an activation function. Give one numerical example.

Then check the example by hand.

23.27.2 Activity 2: shape checking

Ask:

A neural network layer has 8 inputs and 5 neurons. What are the shapes of $W$, $x$, $b$, $z$, and $h$ in $h=\sigma(Wx+b)$?

Then create your own example with different dimensions.

23.27.3 Activity 3: nonlinear necessity

Ask:

Why do stacked linear layers without nonlinear activation collapse into one linear map?

Then write the explanation using matrix multiplication.

23.27.4 Activity 4: representation learning

Ask:

Explain representation learning using examples from images, text, and recommendation systems.

Then summarize the answer in your own words.

23.27.5 Activity 5: neural networks and this book

Ask:

Connect neural networks to vectors, matrices, dot products, projections, SVD, optimization, and geometry.

Then make a concept map.

23.28 23.26 Reflection questions

What does a neuron compute?
Why is the dot product central to a neuron?
What is the role of a bias?
Why does ReLU count as a nonlinear activation?
Why do stacked linear layers collapse into one linear layer?
What is the shape of $W$ for a layer from $\mathbb{R}^{n}$ to $\mathbb{R}^{m}$?
What is a hidden representation?
Why is batch matrix multiplication important in neural networks?
What does softmax do?
How is training a neural network an optimization problem?
Why can hidden layers help with patterns that are not linearly separable?
How do neural networks connect to images and text?

23.29 23.27 Chapter summary

A neuron computes

\[ h=\sigma(w\cdot x+b). \]

A layer computes

\[ h=\sigma(Wx+b). \]

A network composes many layers:

\[ x \longmapsto h_1 \longmapsto h_2 \longmapsto \cdots \longmapsto \hat{y}. \]

Weight matrices mix features. Bias vectors shift thresholds. Activation functions create nonlinearity. Hidden layers build learned representations. Training adjusts all trainable parameters to reduce loss.

In the language of this book:

Final message

Neural networks are not magic boxes. They are trainable chains of matrix transformations, nonlinear gates, and learned coordinate systems.

In the next chapter, we turn to recommendation systems, where matrices record preferences and missing entries become predictions.

--- title: "Chapter 23: Neural Networks as Matrix Machines" subtitle: "Layers, weights, activations, representations, and learning" format: html: toc: true toc-depth: 3 number-sections: true code-fold: true code-tools: true jupyter: python3 --- ## Opening story: from pixels to meaning A photograph enters a computer as numbers. A sentence enters a computer as numbers. A medical record, a recommendation history, a sound wave, and a scientific measurement all enter a computer as numbers. At first, these numbers may feel empty. A $28 \times 28$ image is only $784$ brightness values. A sentence is only a list of token identifiers. A table row is only a vector of features. But a neural network tries to transform these raw numerical descriptions into more useful descriptions. For a handwritten digit, early layers may respond to bright pixels and dark pixels. Later layers may respond to edges, strokes, loops, and shapes. Near the end, the network may produce a vector of scores saying: $$ \text{score}(0),\text{score}(1),\ldots,\text{score}(9). $$ The surprising part is not that the computer stores numbers. We already know that story. The surprising part is that the computer can learn useful coordinate systems for those numbers. This chapter explains neural networks through the linear algebra language developed throughout this book. The central message is: ::: {.callout-important} ## Big idea A neural network is a trainable chain of matrix machines with nonlinear gates between them. ::: A single layer looks like $$ h = \sigma(Wx+b). $$ The matrix $W$ mixes features. The bias $b$ shifts thresholds. The activation function $\sigma$ introduces nonlinearity. Stacking many such layers creates a representation-learning machine. ## Learning goals By the end of this chapter, you should be able to: 1. Interpret a neuron as a dot product plus a bias followed by an activation. 2. Write a layer as $h=\sigma(Wx+b)$ and explain the shapes of $W$, $x$, $b$, and $h$. 3. Explain why nonlinear activation functions are necessary. 4. Compute a forward pass through a small neural network by hand and in Python. 5. Interpret hidden layers as learned representations. 6. Explain batch computation using matrix multiplication. 7. Use softmax to convert class scores into probabilities. 8. Describe training as optimization over weight matrices and bias vectors. 9. Connect neural networks to images, text, recommendation systems, and previous linear algebra ideas. 10. Build and visualize small neural networks in Python. ## 23.1 A neuron is a small scoring machine A neuron receives an input vector $$ x = \begin{bmatrix}x_1\\x_2\\ \vdots \\ x_n\end{bmatrix} \in \mathbb{R}^n. $$ It also has a weight vector $$ w = \begin{bmatrix}w_1\\w_2\\ \vdots \\ w_n\end{bmatrix} \in \mathbb{R}^n $$ and a bias $b \in \mathbb{R}$. First, it computes a weighted score: $$ z = w \cdot x + b = w_1x_1+w_2x_2+\cdots+w_nx_n+b. $$ Then it applies an activation function $\sigma$: $$ h = \sigma(z). $$ So one neuron computes $$ h = \sigma(w \cdot x+b). $$ ::: {.callout-note} ## Meaning of the pieces - The vector $x$ is the information entering the neuron. - The vector $w$ is the pattern the neuron is looking for. - The dot product $w \cdot x$ measures alignment with that pattern. - The bias $b$ shifts the threshold. - The activation $\sigma$ decides how strongly the neuron responds. ::: ### Example 23.1: a small neuron Let $$ x=\begin{bmatrix}2\\3\end{bmatrix}, \quad w=\begin{bmatrix}0.5\\-1\end{bmatrix}, \quad b=1. $$ Then $$ z=w\cdot x+b=0.5(2)-1(3)+1=-1. $$ If $\sigma(z)=\operatorname{ReLU}(z)=\max(0,z)$, then $$ h=\operatorname{ReLU}(-1)=0. $$ ```{python} import numpy as np import matplotlib.pyplot as plt x = np.array([2, 3], dtype=float) w = np.array([0.5, -1], dtype=float) b = 1.0 z = w @ x + b h = np.maximum(0, z) z, h ``` The neuron is inactive because the score is negative. ## 23.2 Activation functions are nonlinear gates A linear score alone is not enough to build a flexible model. The activation function changes how a neuron responds to its score. Common activation functions include: $$ \operatorname{ReLU}(z)=\max(0,z), $$ $$ \operatorname{sigmoid}(z)=\frac{1}{1+e^{-z}}, $$ and $$ \tanh(z)=\frac{e^z-e^{-z}}{e^z+e^{-z}}. $$ ```{python} z_grid = np.linspace(-5, 5, 500) relu = np.maximum(0, z_grid) sigmoid = 1 / (1 + np.exp(-z_grid)) tanh = np.tanh(z_grid) plt.figure(figsize=(8, 4.5)) plt.plot(z_grid, relu, label="ReLU") plt.plot(z_grid, sigmoid, label="sigmoid") plt.plot(z_grid, tanh, label="tanh") plt.axhline(0, linewidth=0.8) plt.axvline(0, linewidth=0.8) plt.xlabel("z") plt.ylabel("activation") plt.title("Three Common Activation Functions") plt.legend() plt.grid(True, alpha=0.3) plt.show() ``` ::: {.callout-important} ## Why activation matters The matrix part mixes information linearly. The activation part bends the computation. Without activation functions, a deep network collapses into one linear map. ::: ## 23.3 Why stacked linear layers collapse Suppose a two-layer network has no activation: $$ h = W_1x, $$ $$ y = W_2h. $$ Then $$ y = W_2W_1x. $$ Since $W_2W_1$ is another matrix, the two layers are equivalent to one linear transformation. More generally, if every layer is linear, then $$ W_LW_{L-1}\cdots W_2W_1x $$ is still only one linear transformation. ::: {.callout-warning} ## Deep but still linear Depth alone does not create nonlinear flexibility. The nonlinear activation functions are what prevent the network from collapsing into one matrix. ::: This is why neural networks combine linear algebra with nonlinear gates. ## 23.4 A layer is many neurons at once A layer contains many neurons. If there are $m$ neurons and $n$ input features, the layer has a weight matrix $$ W \in \mathbb{R}^{m \times n}. $$ Each row of $W$ is the weight vector for one neuron: $$ W= \begin{bmatrix} ---w_1^T---\\ ---w_2^T---\\ \vdots\\ ---w_m^T--- \end{bmatrix}. $$ The layer computes $$ z = Wx+b, $$ where $b \in \mathbb{R}^m$. Then it applies an activation component by component: $$ h = \sigma(z)=\sigma(Wx+b). $$ | Object | Shape | Meaning | |---|---:|---| | $x$ | $n \times 1$ | input vector | | $W$ | $m \times n$ | weight matrix | | $b$ | $m \times 1$ | bias vector | | $z=Wx+b$ | $m \times 1$ | pre-activation scores | | $h=\sigma(z)$ | $m \times 1$ | hidden representation | ::: {.callout-important} ## Layer formula A neural network layer is $$ h=\sigma(Wx+b). $$ ::: ## 23.5 Column view and row view of a layer The same matrix layer has two useful interpretations. ### Row view: each neuron asks a question The $i$th row of $W$ gives one neuron: $$ z_i = w_i \cdot x + b_i. $$ So each row asks: > How strongly does this input match my learned pattern? ### Column view: each input feature contributes to all neurons Write $$ W = \begin{bmatrix} | & | & & | \\ c_1 & c_2 & \cdots & c_n \\ | & | & & | \end{bmatrix}. $$ Then $$ Wx=x_1c_1+x_2c_2+\cdots+x_nc_n. $$ So each input coordinate controls one column contribution to the whole hidden vector. ::: {.callout-note} ## Two views - Row view: neurons detect patterns. - Column view: input features contribute columns to the hidden representation. ::: ## 23.6 A tiny layer example Let $$ x=\begin{bmatrix}2\\3\end{bmatrix}, \quad W=\begin{bmatrix} 1&0\\ 0&1\\ 1&-1 \end{bmatrix}, \quad b=\begin{bmatrix}0\\0\\1\end{bmatrix}. $$ Then $$ z=Wx+b, \quad h=\operatorname{ReLU}(z). $$ ```{python} def relu(z): return np.maximum(0, z) x = np.array([2.0, 3.0]) W = np.array([[1, 0], [0, 1], [1, -1]], dtype=float) b = np.array([0, 0, 1], dtype=float) z = W @ x + b h = relu(z) z, h ``` The layer changes a vector in $\mathbb{R}^2$ into a vector in $\mathbb{R}^3$. ## 23.7 Hidden representations The vector $h$ produced by a hidden layer is called a hidden representation. This is one of the deepest ideas in modern AI: ::: {.callout-important} ## Representation learning A neural network does not only make predictions. It learns new coordinate systems for data. ::: For images, hidden representations may gradually move from pixels to edges to shapes to objects. For text, hidden representations may move from tokens to local meaning to sentence-level meaning. For recommendation systems, hidden representations may move from user-item behavior to latent preferences. For scientific data, hidden representations may move from measurements to hidden variables. ## 23.8 A network is a composition of layers A two-layer network may be written as $$ h = \sigma(W_1x+b_1), $$ $$ \hat{y}=W_2h+b_2. $$ Combining them gives $$ \hat{y}=W_2\sigma(W_1x+b_1)+b_2. $$ A deeper network repeats this pattern: $$ x \longmapsto h_1 \longmapsto h_2 \longmapsto \cdots \longmapsto h_L \longmapsto \hat{y}. $$ This is composition, one of the central ideas in mathematics. ## 23.9 Forward propagation A forward pass means computing the output from the input. ```{python} x = np.array([2.0, 3.0]) W1 = np.array([ [1.0, 0.0], [0.0, 1.0], [1.0, -1.0] ]) b1 = np.array([0.0, 0.0, 1.0]) W2 = np.array([[1.0, 1.0, -1.0]]) b2 = np.array([0.5]) h = relu(W1 @ x + b1) y_hat = W2 @ h + b2 h, y_hat ``` This is the computation a neural network performs before it knows whether its prediction is correct. ## 23.10 Batch computation: many examples at once In practice, we usually process many examples at the same time. Let $X \in \mathbb{R}^{N \times n}$ be a data matrix whose rows are examples. If $W \in \mathbb{R}^{m \times n}$, then the batch version of the layer is $$ Z=XW^T+\mathbf{1}b^T, $$ where $Z \in \mathbb{R}^{N \times m}$. ```{python} X = np.array([ [2.0, 3.0], [1.0, 1.0], [4.0, 0.5], [-1.0, 2.0] ]) Z = X @ W1.T + b1 H = relu(Z) H ``` This is why modern AI depends so heavily on fast matrix multiplication. ## 23.11 Decision boundaries A single linear neuron has a decision boundary $$ w\cdot x+b=0. $$ In two dimensions, this is a line. In higher dimensions, it is a hyperplane. A ReLU neuron changes behavior on the two sides of this boundary: $$ \operatorname{ReLU}(w\cdot x+b)= \begin{cases} 0, & w\cdot x+b\leq 0,\\ w\cdot x+b, & w\cdot x+b>0. \end{cases} $$ ```{python} x1 = np.linspace(-3, 3, 300) x2 = np.linspace(-3, 3, 300) X1, X2 = np.meshgrid(x1, x2) w_boundary = np.array([1.0, -0.7]) b_boundary = -0.2 Z = w_boundary[0]*X1 + w_boundary[1]*X2 + b_boundary A = np.maximum(0, Z) plt.figure(figsize=(6, 5)) plt.contourf(X1, X2, A, levels=20) plt.contour(X1, X2, Z, levels=[0], linewidths=2) plt.xlabel("$x_1$") plt.ylabel("$x_2$") plt.title("A ReLU Neuron: Linear Boundary, Nonlinear Output") cf = plt.contourf(X1, X2, A, levels=20) plt.colorbar(cf, label="activation") plt.gca().set_aspect("equal", adjustable="box") plt.show() ``` ## 23.12 Nonlinear boundaries from hidden layers One neuron creates one fold. Many neurons create many folds. A hidden layer can divide the plane into several regions, and a second layer can combine those regions. This is why a neural network can model curved or piecewise-linear boundaries even though each matrix multiplication is linear. ::: {.callout-note} ## Geometric view Neural networks repeatedly transform the space so that complicated patterns become easier to separate. ::: ## 23.13 Classification scores and softmax For classification, the last layer often outputs one score per class. For example, $$ s=\begin{bmatrix}s_1\\s_2\\s_3\end{bmatrix} $$ could represent scores for three classes. The predicted class is the one with the largest score. ```{python} scores = np.array([1.2, 3.5, 0.7]) classes = np.array(["cat", "dog", "bird"]) classes[np.argmax(scores)] ``` Softmax converts scores into positive numbers that add to $1$: $$ p_i=\frac{e^{s_i}}{\sum_{j=1}^k e^{s_j}}. $$ ```{python} def softmax(scores): shifted = scores - np.max(scores) exp_scores = np.exp(shifted) return exp_scores / exp_scores.sum() softmax(scores) ``` ::: {.callout-note} ## Softmax Softmax turns raw class scores into a probability distribution. ::: ## 23.14 Loss functions measure error A network needs feedback. The loss function tells the network how wrong it is. For regression, a common loss is mean squared error: $$ L=\frac{1}{N}\sum_{i=1}^N (y_i-\hat{y}_i)^2. $$ For classification, a common loss is cross-entropy. If the true class is $c$, and the softmax probability assigned to that class is $p_c$, then the loss for one example is $$ L=-\log(p_c). $$ A confident correct prediction has small loss. A confident wrong prediction has large loss. ## 23.15 Training is optimization over matrices The weights and biases are learned from data. Training means solving an optimization problem: $$ \min_{W_1,b_1,W_2,b_2,\ldots} L. $$ Gradient descent updates parameters by moving against the gradient: $$ \theta_{\text{new}} = \theta_{\text{old}}-\eta \nabla L(\theta_{\text{old}}). $$ Here $\eta$ is the learning rate and $\theta$ represents all trainable parameters. ::: {.callout-important} ## Training goal A neural network learns by changing matrices and bias vectors so that the loss decreases. ::: ## 23.16 A tiny regression training example We first train the simplest model: $$ \hat{y}=wx+b. $$ ```{python} np.random.seed(7) X_train = np.linspace(-3, 3, 80) y_train = 1.8 * X_train - 0.6 + 0.5*np.random.normal(size=80) w = 0.0 b = 0.0 eta = 0.04 loss_history = [] for step in range(300): y_pred = w * X_train + b error = y_pred - y_train loss = np.mean(error**2) loss_history.append(loss) grad_w = 2*np.mean(error * X_train) grad_b = 2*np.mean(error) w -= eta * grad_w b -= eta * grad_b w, b, loss_history[-1] ``` ```{python} plt.figure(figsize=(7, 4)) plt.plot(loss_history) plt.xlabel("training step") plt.ylabel("mean squared error") plt.title("Training Reduces Loss") plt.grid(True, alpha=0.3) plt.show() plt.figure(figsize=(7, 4)) plt.scatter(X_train, y_train, alpha=0.65, label="data") plt.plot(X_train, w*X_train+b, label="learned model") plt.xlabel("x") plt.ylabel("y") plt.title("A Learned Linear Model") plt.legend() plt.grid(True, alpha=0.3) plt.show() ``` This example is not deep, but it shows the essential training idea: parameters move to reduce loss. ## 23.17 A tiny nonlinear network for XOR The XOR pattern is a classic example because it is not linearly separable. The four input points are $$ (0,0), (0,1), (1,0), (1,1), $$ with labels $$ 0,1,1,0. $$ No single line separates the $1$s from the $0$s. But a network with a hidden layer can do it. The following hand-built network uses ReLU features: $$ h_1=\operatorname{ReLU}(x_1+x_2), $$ $$ h_2=\operatorname{ReLU}(x_1+x_2-1), $$ and then combines them as $$ \hat{y}=h_1-2h_2. $$ ```{python} X_xor = np.array([[0,0], [0,1], [1,0], [1,1]], dtype=float) W1_xor = np.array([[1, 1], [1, 1]], dtype=float) b1_xor = np.array([0, -1], dtype=float) W2_xor = np.array([[1, -2]], dtype=float) b2_xor = np.array([0], dtype=float) H_xor = relu(X_xor @ W1_xor.T + b1_xor) y_xor_score = H_xor @ W2_xor.T + b2_xor np.c_[X_xor, H_xor, y_xor_score] ``` This tiny example shows the power of hidden representations. The hidden layer creates new features that make the pattern easier to express. ## 23.18 Images: fully connected layers and parameter counts A grayscale $28 \times 28$ image can be flattened into a vector in $\mathbb{R}^{784}$. If a fully connected layer has $128$ neurons, then $$ W \in \mathbb{R}^{128 \times 784}. $$ The layer has $$ 128 \cdot 784 $$ weights and $128$ biases. ```{python} num_weights = 128 * 784 num_biases = 128 num_weights + num_biases ``` This is already many parameters for a tiny image. For larger images, fully connected layers become very expensive. This motivates convolutional layers, which use small local filters instead of dense connections. ## 23.19 Text: embeddings and attention as linear algebra For text, the first step is often embedding: each token becomes a vector. A sentence of $n$ tokens with embedding dimension $d$ becomes a matrix $$ X \in \mathbb{R}^{n \times d}. $$ Modern language models repeatedly transform these token vectors. One important operation is attention. In simplified form, attention uses three matrices: $$ Q=XW_Q, \quad K=XW_K, \quad V=XW_V. $$ Then it computes dot-product scores: $$ QK^T. $$ So even modern language models are filled with matrix multiplication, dot products, and vector representations. ## 23.20 Neural networks and the rest of this book | Earlier idea | Neural-network meaning | |---|---| | Vector | input, hidden state, embedding, output | | Matrix | weight layer, projection, feature mixer | | Dot product | neuron score, similarity score, attention score | | Norm | error size, weight size, regularization | | Projection | feature extraction and approximation | | Orthogonality | stable coordinates, decorrelation, initialization ideas | | Eigenvalues | stability of repeated transformations | | SVD | compression, denoising, low-rank structure | | Optimization | training weights to reduce loss | | Geometry | decision boundaries and representation spaces | Neural networks do not replace linear algebra. They intensify it. ## 23.21 What neural networks can and cannot explain Neural networks are powerful, but they are not magic. They can learn flexible patterns from data, but they also depend on: - data quality, - feature representation, - training stability, - architecture choice, - loss function choice, - regularization, - computational resources, - and evaluation design. A model may fit training data well but fail on new data. It may rely on spurious patterns. It may be hard to interpret. It may behave unpredictably outside the training distribution. Linear algebra helps us ask better questions: - What space is the data living in? - What transformations are being applied? - What information is amplified? - What information is lost? - What directions are unstable? - What representation is learned? ## 23.22 Worked examples ### Example 23.2: shape of a layer A layer takes $20$ input features and produces $7$ hidden features. Then $$ W \in \mathbb{R}^{7 \times 20}, \quad b \in \mathbb{R}^7, \quad h \in \mathbb{R}^7. $$ It has $$ 7\cdot 20+7=147 $$ trainable parameters. ### Example 23.3: two linear layers without activation Let $$ W_1=\begin{bmatrix}1&2\\0&1\end{bmatrix}, \quad W_2=\begin{bmatrix}2&0\\1&1\end{bmatrix}. $$ Without activation, the two-layer map is $$ y=W_2W_1x. $$ Compute $$ W_2W_1 = \begin{bmatrix}2&4\\1&3\end{bmatrix}. $$ So the two layers are equivalent to the single matrix $$ \begin{bmatrix}2&4\\1&3\end{bmatrix}. $$ ### Example 23.4: softmax and prediction Suppose a classifier returns scores $$ s=\begin{bmatrix}1.0\\2.0\\0.5\end{bmatrix}. $$ The largest score is the second score, so the predicted class is class $2$. The softmax probabilities are ```{python} softmax(np.array([1.0, 2.0, 0.5])) ``` ## 23.23 Practice problems ### Problem 1 Let $$ x=\begin{bmatrix}1\\2\\-1\end{bmatrix}, \quad w=\begin{bmatrix}3\\-1\\2\end{bmatrix}, \quad b=4. $$ Compute $z=w\cdot x+b$ and $\operatorname{ReLU}(z)$. ::: {.callout-tip collapse="true"} ## Solution $$ z=3(1)-1(2)+2(-1)+4=3. $$ Therefore $$ \operatorname{ReLU}(z)=3. $$ ::: ### Problem 2 Let $$ W=\begin{bmatrix} 1&0\\ 0&1\\ 1&1 \end{bmatrix}, \quad x=\begin{bmatrix}2\\4\end{bmatrix}, \quad b=\begin{bmatrix}0\\0\\-3\end{bmatrix}. $$ Compute $z=Wx+b$ and $h=\operatorname{ReLU}(z)$. ::: {.callout-tip collapse="true"} ## Solution $$ Wx=\begin{bmatrix}2\\4\\6\end{bmatrix}, \quad z=\begin{bmatrix}2\\4\\3\end{bmatrix}. $$ All entries are positive, so $$ h=\begin{bmatrix}2\\4\\3\end{bmatrix}. $$ ::: ### Problem 3 A layer has input dimension $50$ and output dimension $12$. What is the shape of its weight matrix? How many biases does it have? ::: {.callout-tip collapse="true"} ## Solution The weight matrix has shape $12 \times 50$. The bias vector has $12$ entries. ::: ### Problem 4 A flattened color image has dimension $32\cdot 32\cdot 3$. A fully connected layer has $200$ neurons. How many weights and biases does the layer have? ::: {.callout-tip collapse="true"} ## Solution The input dimension is $$ 32\cdot 32\cdot 3=3072. $$ The layer has $$ 200\cdot 3072=614400 $$ weights and $200$ biases. ::: ### Problem 5 Explain why nonlinear activation functions are necessary in deep networks. ::: {.callout-tip collapse="true"} ## Solution Without nonlinear activations, each layer is a linear transformation. The composition of linear transformations is still linear, so the whole deep network would be equivalent to one matrix. Nonlinear activations prevent this collapse and allow the network to represent more flexible patterns. ::: ### Problem 6 What is a hidden representation? Give one example from images and one from text. ::: {.callout-tip collapse="true"} ## Solution A hidden representation is an internal vector produced by a hidden layer. For images, it might encode edges or shapes. For text, it might encode semantic information about a word or sentence. ::: ### Problem 7 Why is batch computation written as $Z=XW^T+\mathbf{1}b^T$ instead of repeating one example at a time? ::: {.callout-tip collapse="true"} ## Solution The batch formula processes many examples simultaneously using one matrix multiplication. This is more efficient and matches how modern hardware accelerates neural network computation. ::: ### Problem 8 Why is a single neuron in $\mathbb{R}^2$ unable to represent the XOR pattern by itself? ::: {.callout-tip collapse="true"} ## Solution A single threshold neuron separates the plane with one line. The XOR labels cannot be separated by one line, so a single linear decision boundary is not enough. ::: ## 23.24 Python practice ### Exercise 1: compute one neuron ```{python} x = np.array([1, 2, -1], dtype=float) w = np.array([3, -1, 2], dtype=float) b = 4.0 z = w @ x + b h = relu(z) z, h ``` ### Exercise 2: compute one layer ```{python} W = np.array([[1, 0], [0, 1], [1, 1]], dtype=float) x = np.array([2, 4], dtype=float) b = np.array([0, 0, -3], dtype=float) z = W @ x + b h = relu(z) z, h ``` ### Exercise 3: batch layer computation ```{python} X = np.array([ [2, 4], [1, 1], [3, 0], [0, 2] ], dtype=float) Z = X @ W.T + b H = relu(Z) H ``` ### Exercise 4: visualize a hidden layer in two dimensions ```{python} def tiny_hidden_features(points): W = np.array([[1, 1], [1, -1], [-1, 1]], dtype=float) b = np.array([-0.5, 0.0, 0.0]) return relu(points @ W.T + b) rng = np.random.default_rng(10) points = rng.normal(size=(300, 2)) H = tiny_hidden_features(points) plt.figure(figsize=(6, 5)) plt.scatter(H[:, 0], H[:, 1], c=H[:, 2], s=25, alpha=0.8) plt.xlabel("hidden feature 1") plt.ylabel("hidden feature 2") plt.title("A Hidden Representation of 2D Points") plt.colorbar(label="hidden feature 3") plt.grid(True, alpha=0.3) plt.show() ``` ### Exercise 5: softmax ```{python} scores = np.array([2.0, 0.5, 1.2, 3.1]) softmax(scores) ``` ### Exercise 6: train a tiny nonlinear model ```{python} # A small NumPy network for a nonlinear one-dimensional curve. np.random.seed(3) X = np.linspace(-2, 2, 120).reshape(-1, 1) y = (np.sin(3*X[:, 0]) + 0.15*np.random.randn(120)).reshape(-1, 1) hidden = 12 W1 = 0.5*np.random.randn(hidden, 1) b1 = np.zeros((hidden,)) W2 = 0.5*np.random.randn(1, hidden) b2 = np.zeros((1,)) eta = 0.02 losses = [] for step in range(1500): Z1 = X @ W1.T + b1 H = np.maximum(0, Z1) Yhat = H @ W2.T + b2 E = Yhat - y loss = np.mean(E**2) losses.append(loss) dY = 2*E/len(X) dW2 = dY.T @ H db2 = dY.sum(axis=0) dH = dY @ W2 dZ1 = dH * (Z1 > 0) dW1 = dZ1.T @ X db1 = dZ1.sum(axis=0) W2 -= eta*dW2 b2 -= eta*db2 W1 -= eta*dW1 b1 -= eta*db1 plt.figure(figsize=(7, 4)) plt.plot(losses) plt.xlabel("step") plt.ylabel("MSE") plt.title("Training a Tiny ReLU Network") plt.grid(True, alpha=0.3) plt.show() plt.figure(figsize=(7, 4)) plt.scatter(X[:, 0], y[:, 0], s=20, alpha=0.55, label="data") plt.plot(X[:, 0], Yhat[:, 0], linewidth=2, label="network fit") plt.xlabel("x") plt.ylabel("y") plt.title("A Tiny Neural Network Learns a Nonlinear Curve") plt.legend() plt.grid(True, alpha=0.3) plt.show() ``` ## 23.25 AI companion activities ### Activity 1: neuron as dot product Ask an AI tool: > Explain a neuron as a dot product plus bias followed by an activation function. Give one numerical example. Then check the example by hand. ### Activity 2: shape checking Ask: > A neural network layer has 8 inputs and 5 neurons. What are the shapes of $W$, $x$, $b$, $z$, and $h$ in $h=\sigma(Wx+b)$? Then create your own example with different dimensions. ### Activity 3: nonlinear necessity Ask: > Why do stacked linear layers without nonlinear activation collapse into one linear map? Then write the explanation using matrix multiplication. ### Activity 4: representation learning Ask: > Explain representation learning using examples from images, text, and recommendation systems. Then summarize the answer in your own words. ### Activity 5: neural networks and this book Ask: > Connect neural networks to vectors, matrices, dot products, projections, SVD, optimization, and geometry. Then make a concept map. ## 23.26 Reflection questions 1. What does a neuron compute? 2. Why is the dot product central to a neuron? 3. What is the role of a bias? 4. Why does ReLU count as a nonlinear activation? 5. Why do stacked linear layers collapse into one linear layer? 6. What is the shape of $W$ for a layer from $\mathbb{R}^{n}$ to $\mathbb{R}^{m}$? 7. What is a hidden representation? 8. Why is batch matrix multiplication important in neural networks? 9. What does softmax do? 10. How is training a neural network an optimization problem? 11. Why can hidden layers help with patterns that are not linearly separable? 12. How do neural networks connect to images and text? ## 23.27 Chapter summary A neuron computes $$ h=\sigma(w\cdot x+b). $$ A layer computes $$ h=\sigma(Wx+b). $$ A network composes many layers: $$ x \longmapsto h_1 \longmapsto h_2 \longmapsto \cdots \longmapsto \hat{y}. $$ Weight matrices mix features. Bias vectors shift thresholds. Activation functions create nonlinearity. Hidden layers build learned representations. Training adjusts all trainable parameters to reduce loss. In the language of this book: ::: {.callout-important} ## Final message Neural networks are not magic boxes. They are trainable chains of matrix transformations, nonlinear gates, and learned coordinate systems. ::: In the next chapter, we turn to recommendation systems, where matrices record preferences and missing entries become predictions.

Object	Shape	Meaning
\(x\)	\(n \times 1\)	input vector
\(W\)	\(m \times n\)	weight matrix
\(b\)	\(m \times 1\)	bias vector
\(z=Wx+b\)	\(m \times 1\)	pre-activation scores
\(h=\sigma(z)\)	\(m \times 1\)	hidden representation
